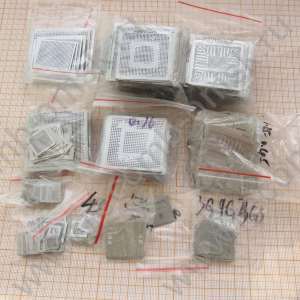

Набор из 561шт. трафаретов для "реболинга" микросхем.
0.25MM Soler Ball (1 pcs)
901 P4933007 12.6 * 12.6 1
0.30MM Soler Ball (11 pcs)
03,000 net (spacing 0.58MM) 29.0 * 29.0 1
Intel 82801 IUX 18.0 * 18.0 1
SIRF AT640 16.0 * 16.5 1
MTK MT6226 16.0 * 16.4 1
INFINEON TECH PMB7850 16.0 * 16.0 1
TI 850AZYL 16.0 * 16.0 1
Intel BD82HM77 27.6 * 27.6 1
LSI L-FW643E-2 11.2 * 11.2 1
LATTICE LFXP2-5E 10.4 * 10.4 1
1131S2P1X2 13.8 * 20.1 1
IR 7807A779 27.3 * 27.8 1
0.35MM Soler Ball (9 pcs)
03,500 net (spacing 0.65MM)" 29.0 * 29.0 1
Intel AC82GS45 28.0 * 30.0 1
Intel AF82US15W SLGFQ 24.5 * 24.5 1
Intel AC80566 / 533 16.5 * 16.5 1
Intel BD82PM55 30.0 * 28.0 1
Intel 330-FBGA-1414 (newly added) 16.4 * 16.4 1
Intel 82801HUB 21.9 * 22.0 1
Intel SRO4S-CPU 29.8 * 36.1 1
FREESCALE MCIMX27VOP4A 20.9 * 20.9 1
0.4MM Soler Ball (8 pcs)
04,000 net (spacing 0.7MM)" 35.4 * 35.4 1
Intel BD82P55 29.0 * 29.0 1
Intel BD82H61 32.2 * 32.2 1
Intel I7-620M 32.0 * 37.8 1
NV MCP79U-B2 29.4 * 29.6 1
NV MCP89UL-A3 29.3 * 29.7 1
SAMSUNG K9F2G08ROA-JIBO 17.6 * 19.3 1
Intel E20810
0.45MM Soler Ball (20pcs)
04 500 net (spacing 0.78MM) 35.4 * 35.4 1
Memory DDR1 14.0 * 13.8 1
Memory DDR2 17.6 * 12.2 1
Memory DDR2-2 17.6 * 17.6 1
Memory DDR2-3 19.0 * 16.0 1
Memory DDR3 (XBOX CACHE memory) 18.4 * 13.4 1
Memory DDR3-2 19.0 * 13.0 1
Memory DDR3-3 16.0 * 15.0 1
Memory DDR3-4 KF 20.5 * 20.9 1
Memory DDR5 19.0 * 16.0 1
Intel "AC82GL40 38.4 * 38.4 1
Intel AC82P45 38.4 * 38.4 1
Intel CG82NM10 21.0 * 21.0 1
Intel I3 26.3 * 33.6 1
ARM PVC0019 19.0 * 19.4 1
AUO L110IA07 17.4 * 17.4 1
F2117LP 11.9 * 11.9 1
AVX SR071 (I7) 26.7 * 33.8 1
18A16GW 16.6 * 16.7 1
CC-16ALQDW 26.5 * 26.7 1
0.5MM Soler Ball (70 pcs)
05 000 net (spacing 0.8MM) 30.9 * 29.4 1
ATI RS485MC 24.0 * 24.0 1
ATI 216-0707009 // M64-M 216PVAVA12FG 33.0 * 33.0 1
ATI 216-0707001 28.0 * 28.0 1
ATI 215-0669065 40.4 * 40.4 1
ATI 215-0708017 38.4 * 38.4 1
ATI 215-0719090 // 216-0728014 // 216-0728016 33.0 * 33.0 1
ATI 215-0758000 40.0 * 40.0 1
ATI 215-0735003 43.0 * 43.0 1
ATI 216-0728018 / Universal ATI 216-0708020 25.0 * 25.0 1
ATI 218-0697010 26.5 * 26.5 1
ATI 700M // ATI200M 30.4 * 30.4 1
ATI RS800ME // RS600ME 38.4 * 38.4 1
ATI IXP600 // SB600 (XP600) 26.0 * 26.0 1
ATI SB700 / RD700 / RD780 24.0 * 24.0 1
ATI IXP460 26.0 * 26.0 1
AMD E350 (EME350GBB22GT 23.6 * 23.6 1
ATI X1300 26.0 * 26.0 1
ATI M64-M 27.3 * 27.4 1
ATI AMD-CPU 0.5 29.8 * 29.9 1
ATI RS485M 23.6 * 23.6 1
ATI 215-0807018 42.8 * 42.8 1
AMD AND-X2-CPU 33.6 * 33.8 1
AMD AMD AM4455HE24HJ 23.8 * 23.8
NV MCP67MV-A2 30.4 * 30.4 1
NV MCP7A-P-B1 38.4 * 38.4 1
NV NF-6100-430 28.4 * 28.4 1
NV NF-200-SL1-A2 21.4 * 21.4 1
NV NF-6801-SL1-N-A2 35.4 * 35.4 1
NV NF-7150-6301-A2 34.4 * 34.4 1
NV GFGO7400-N-A3 // GFGO7200 26.0 * 26.0 1
NV GF104-325-A1 36.6 * 46.6 1
NV G94-300-A1 38.4 * 38.4 1
NV G96-600-A1 // GT215-450-A2 33.0 * 33.0 1
NV G200-103-B3 47.0 * 47.0 1
NV GF 106-250-KA-A1 39.0 * 39.0 1
NV NF790IU-SLI-N-B1 37.0 * 37.0 1
NV GF100-030-A3 46.0 * 46.0 1
NV BR03-N-A3 25.0 * 25.0 1
NV NF8200 27.8 * 27.8 1
NV N12P-Q3-A1 0.5 31.3 * 31.3
NV G96-309-A1 31.2 * 31.2 1
NV G86-631-A2 (New) 0.5 25.0 25.0 * 1
NV GF108-876-A1 31.6 * 31.6 1
Intel 965 38.4 * 38.4 1
Intel QG 82945P // 82945GC 38.4 * 38.4 1
Intel QG 82945PM 40.4 * 40.4 1
Intel QG 82945GMS 30.4 * 30.4 1
Intel NQ82915GMS 30.4 * 30.4 1
Intel LE82PM965 38.4 * 38.4 1
Intel LGA1155 43.2 * 42.4 1
Intel LGA1156 50.0 * 49.0 1
Intel N475CPU 26.0 * 26.0 1
Intel E50999 24.3 * 29.1 1
VIA VX900 33.8 * 33.9 1
VIA MSPII 36.5 * 36.5 1
VIA VX800 35.4 * 35.5 1
ATHEROS AR2313A-001 16.0 * 16.0 1
ATHEROS AR2414A-001 19.0 * 19.0 1
Ralink RT2571W (Ralink2571 chip / RT2573) 16.0 * 16.0 1
Conexant CX82310-14 19.0 * 19.5 1
ST STi7162 30.0 * 30.0 1
SAMSSUNG S5C2410H11 19.0 * 19.0 1
SAMSSUNG S5C2410H 19.0 * 19.0 1
NSC-NATIONAL SEMI 1822-0727 17.6 * 17.9 1
INGENIC 4732HXF 16.0 * 16.0 1
TI 5416GGU 16.0 * 16.0 1
TI TMS320DM642A2DK (newly added) 23.8 * 23.8 1
XILINX FG900 23.8 * 23.8 1
CC-06AP8LW (newly added) 24.1 * 24.1 1
0.55MM Soler Ball (1 pcs)
AMD / ATI 218-0755064 28.8 * 28.8 1
0.6MM Soler Ball (120 pcs)
NV G86-735-A2 // G86-703-A2 35.4 * 35.4 1
NV G80-180-K1-A2 45.4 * 45.4 1
NV GO5200 35.4 * 35.4 1
NV GO6800-B1 40.4 * 40.4 1
NV 4200GO 39.0 * 39.0 1
NV NF-4N-A3 // NF4-A3 35.4 * 35.4 1
NV NF-430-N-A3 30.4 * 30.4 1
NV NF550 / NF570 35.7 * 35.7 1
NV NF-G6150-N-A2 30.4 * 30.4 1
NV NF-GO150 38.0 * 38.0 1
NV 420GO 26.0 * 26.0 1
NV MX440 35.4 * 35.4 1
NV HSI-A4 25.6 * 32.8 1
NV NF 250 38.4 * 38.4 1
NV FXGO5200 35.4 * 35.4 1
NV FX5700 38.4 * 38.4 1
NV FX5900 // GO6800LE 43.5 * 43.5 1
NV MCP89M2-A2 34.3 * 34.3 1
NV GO5700 33.2 * 33.2 1
NV NF4-SL1-SPP 41.5 * 41.5 1
NV GO 6800/6600 39.6 * 39.8 1
NV GF 420GO-32M 33.2 * 33.4 1
ATI 215-0718020 30.8 * 30.8 1
ATI 215RGMDKA13FG 46.5 * 46.5 1
ATI 218BAPAGA12F 24.4 * 26.4 1
ATI 200M 35.4 * 35.4 1
ATI 7500 M7 / 9000 35.4 * 35.4 1
ATI 9000 64M 35.4 * 35.4 1
ATI 9000 IGP 35.4 * 35.4 1
ATI 9100 IGP 38.4 * 38.4 1
ATI 9200 // 9600 // 9700 // X300 // X600 // X700 35.4 * 35.4 1
ATI 9600-T2 35.4 * 35.4 1
ATI M6-C16 (K6-C16) 29.4 * 29.4 1
ATI IXP400 // IXP450 35.4 * 35.4 1
ATI X1300-M52-P 216PNAKA13FG 38.4 * 38.4 1
ATI X1800 45.4 * 45.4 1
ATI R360 44.4 * 44.4 1
ATI RC410MB // AT1200M Universal 35.4 * 35.4 1
ATI R480 43.5 * 43.5 1
AMD 215-0716050 34.0 * 34.3 1
ATI RS400 39.5 * 39.1 1
VIA CLE266 29.5 * 29.5 1
VIA C7-M 25.6 * 25.6 1
VIA CX700M 40.4 * 40.4 1
VIA VT8235M 29.5 * 29.5 1
VIA VT8235 // VT8237 // VT8237A 30.4 * 30.4 1
VIA VT8237R (8237R) 30.4 * 30.4 1
VIA VT8237S 29.0 * 29.0 1
VIA VT8251 36.4 * 36.4 1
VIA VX700 38.0 * 37.9 1
VIA P4M898 41.4 * 41.4 1
VIA P4M900 // P4M890 // CN896 // VN896 40.4 * 40.4 1
VIA PN800 39.0 * 39.0 1
VIA K8M890 36.4 * 36.4 1
VIA VT82037R (New) 0.6 29.7 29.7 * 1
VIA K8M896 37.2 * 37.3 1
SIS 307 (307ELV) 15.0 * 15.0 1
SIS 648FX 40.4 * 40.4 1
SIS 649 39.5 * 39.5 1
SIS 655FX 38.0 * 38.0 1
SIS 661FX (M661MX M661GX) 40.4 * 40.4 1
SIS 662 32.8 * 32.8 1
SIS 671 // SIS671DX / SIS672 38.4 * 38.4 1
SIS 756 36.4 * 36.4 1
SIS 964L (964) 30.4 * 30.4 1
SIS 965L (965) 30.4 * 30.4 1
SIS 968 30.0 * 30.0 1
Intel N270-1.60GHZ / 512 / 533- SLB73 24.5 * 24.5 1
Intel 1828-0206 // 1825-0206 26.0 * 26.0 1
Intel 775CPU 40.4 * 40.4 1
Intel 82801HB (80001HB) 33.6 * 33.6 1
Intel 82801GBM 35.4 * 35.4 1
Intel 82801HBM 35.4 * 35.4 1
Intel 82801IB // 82801IR 35.4 * 35.4 1
Intel 82801FBM 35.4 * 35.4 1
Intel 82801BA 26.0 * 26.0 1
Intel 82915P 40.4 * 40.4 1
Intel 989 40.0 * 39.6 1
Intel QG5000P 45.0 * 45.0 1
Intel 915PM / 915GM (82915PM 42.7 * 42.7 1
Intel X38 (AC82X38) 45.4 * 45.4 1
Intel AC82X58 (X58) 39.5 * 39.5 1
Intel RC82540EM 19.0 * 19.0 1
Intel RG82865PE (865PE) 40.4 * 40.4 1
Intel LGA1366 (IGA1366) 50.5 * 47.5 1
Intel LTD2053 29.3 * 29.3 1
BROADCOM BCM5464 23.5 * 23.5 1
BROADCOM BCM21000 33.8 * 33.8 1
BROADCOM BCM56639 (DCM56639) 46.5 * 46.5 1
BROADCOM BCM6368UKPBG 39.0 * 39.0 1
CB6849 19.0 * 19.0 1
CIZB0003716 (C1ZBZ0003716) 31.4 * 31.4 1
MTK MT5362BLG 30.0 * 30.6 1
MTK MT5363 29.4 * 29.4 1
MTK MT5388 29.0 * 29.0 1
MTK MT8202AG 32.3 * 32.3 1
ARM MT8520 30.0 * 30.0 1
M1573 R1 (M1573 A1) 32.8 * 32.8 1
M1697-AIB 38.4 * 38.4 1
FREESCAD MPC8270 30.0 * 30.0 1
PIXELWOR PW106B-10L 30.0 * 30.0 1
PIXELWOR PW218-10L 27.0 * 27.0 1
PHI SAA7117AE 17.6 * 17.8 1
TSX188-B1A02-L 30.2 * 30.2 1
LSILOGLC 62898C2 28.0 * 28.0 1
LSILOGLC 62095D2 30.0 * 30.2 1
XCI5000 676 (newly added) 28.8 * 28.8 1
XILINX XC3S1000 25.3 * 25.3 1
XILINX FG456EGQ-0817 (XC3S1500-FG456EGQ) 25.2 * 25.2 1
1009HAL (newly added) 25.2 * 25.2 1
Agilent 28V3-0001 KF 19.7 * 19.9 1
S4LHP01 KF 25.8 * 25.9 1
1822-0724 KF 17.6 * 17.8 1
L7D2053 KF 29.5 * 29.6 1
HP 1825-0184 KF 17.7 * 17.8 1
ST X380 42.2 * 42.6 1
0.6 (0.9 spacing) (pitch = 0.9mm) Universal Stencil 45.4 * 45.5 1
0.6 (1.0 spacing) (pitch = 1.0mm) Universal Stencil 45.4 * 45.4 1
0.6 (1.1 spacing) (pitch = 1.1mm) Universal Stencil 31.9 * 31.9 1
Techwell TW2880P 1
0.76MM Soler Ball (50 pcs)
07 600 net (1.27 pitch) 50.0 * 50.0 1
ATI 216-PSZBFA22H \\ 320M / 330M / 340M / 345M Universal (ATI 216PS2BFA22H) 38.4 * 38.4 1
ATI SOKET SI CPU (AMD SOSKET SI CPU) / i638de 35.4 * 35.4 1
ATI IXP150 33.0 * 33.0 1
ATI 941 44.0 * 44.0 1
ATI M1535 + 30.0 * 30.0 1
ATI AM2 44.0 * 44.0 1
ATI AM3 44.0 * 44.0 1
Intel 478CPU 36.0 * 36.0 1
Intel 479 / LE80539 // SL6F5 37.0 * 37.0 1
Intel 754CPU 40.0 * 40.0 1
Intel 845GL / 845GV 40.4 * 40.4 1
Intel 855GME 40.4 * 40.4 1
Intel 82801EB 35.4 * 35.4 1
Intel 82801AA (82801AA KF) 26.0 * 26.0 1
Intel 82801DBM / 82801DB // 82801CAM 33.0 * 33.0 1
Intel 82371EB 28.5 * 28.5 1
Intel AL M1671 (ALIM1671BI) 40.4 * 40.4 1
Intel FW82815EP 39.4 * 39.4 1
Intel RG82875 45.5 * 45.5 1
Intel 845MP / 855P RG845MP / 855PM 40.4 * 40.4 1
Intel 82801CAM FW82801CAM 0.76 32.6 * 32.6 1
SIS 630E // 630 40.4 * 40.4 1
SIS 630S 40.4 * 40.4 1
SIS 650 40.4 * 40.4 1
SIS 760LV 40.0 * 40.0 1
SIS 962 29.0 * 29.0 1
VIA K8M800 35.4 * 35.4 1
VIA K8T800 36.0 * 36.0 1
VIA VT82C686B 28.5 * 28.5 1
VIA VT82C694X 36.0 * 36.0 1
VIA VN800 40.4 * 40.4 1
VIA P4M800 40.0 * 40.0 1
VIA PN133 (PN133T) 37.0 * 37.0 1
VIA P4X266A 40.4 * 40.4 1
AUO AUO-024 29.6 * 29.9 1
BROADCOM BCM53242 29.0 * 29.0 1
European and American MCP8245RRZU400D (MCP8245 // MCP8245AR) 36.4 * 36.4 1
FREESCAD MPC880 27.0 * 27.5 1
GEENSI FLI18532-LF 39.0 * 39.0 1
PANELPRO T7203 37.0 * 37.0 1
MARVELL 1825-8249 29.6 * 29.6 1
MARVELL 1825-0050 37.0 * 37.4 1
2R39741 25.5 * 25.5 1
NXP / HP 1825-0177 40.8 * 40.8 1
Z71Z46A 40.9 * 40.9 1
BROADCOM BCM3349KPBG 29.0 * 29.0 1
1825-0427 KF 28.7 * 28.8 1
HP 1825-0264 KF 38.8 * 39.1 1
320/330/340 35.9 1 35.7 *
Here is the video game stencil (46)
Microsoft XBOX 360CPU 0.6 35.4 * 35.4 1
Microsoft XBOX 360GPU 0.6 38.4 * 38.4 1
Microsoft XBOX 360HANA 0.6 20.0 * 20.0 1
Microsoft XBOX 360CSP (XBOX 360 Southbridge) 0.6 26.0 * 26.0 1
Microsoft XBOX360 XCPU C-A01 0.6 33.6 * 33.8 1
Microsoft XB360AV 0.6 18.0 * 18.0 1
Microsoft XBOX360-GPU-B 0.6 37.6 * 37.6 1
Microsoft XBOX360-KSB X850744-004 0.55 1
Sony PS3-CPU (new model) 0.6 45.4 * 45.4 1
Sony PS3-GPU (old model) 0.6 45.4 * 45.4 1
Sony CPS3 CPU BALL 0.6 45.0 * 45.0 1
Sony PS3-CXR714120 // CXR714123 0.6 23.4 * 23.4 1
Sony PS3 CXD2964GB 0.6 45.4 * 45.4 1
Sony PS3 CXD2973GB // 2976GB 0.6 43.5 * 43.5 1
Nintendo WII GPUAA (new model) 0.6 31.2 * 31.2 1
Nintendo WII GPU (old model) 0.6 34.4 * 34.4 1
Nintendo WII CPU (new model) 0.6 25.0 * 25.0 1
Nintendo WIICPUB 0.5 16.5 * 16.5 1
Sony CXD2949CGB 0.76 38.4 * 38.4 1
Sony CXD2972GB 0.6 37.0 * 37.0 1
Sony CXD2976GB 0.6 38.4 * 38.4 1
Sony CXD2980BGB // CXD29808 0.6 28.0 * 28.0 1
Sony CXD2992GB 0.6 44.4 * 44.4 1
Sony CXD7203-15 0.76 31.4 * 31.4 1
Sony CXD9209GB 0.6 31.4 * 31.4 1
Sony CXD9799GB (CAD9799GP) 0.76 26.0 * 26.0 1
Sony CXD9833GB 0.76 45.4 * 45.4 1
Sony CXD1876 (CXD1876-102GG) / New plus 0.35 18.6 1 18.6 *
Sony CXD2981GB 0.6 44.3 * 44.3 1
SONY CXD4140GG LFBGA-97 0.45 14.0 * 14.0 1
SONY CXD5148GG LFBGA-64 0.45 12.1 * 12.1 1
PSP PSP-1/5209 (0.3mm Soler Ball) 19.0 * 19.0 1
PSP PSP-2/2975 (0.3mm Soler Ball) 22.0 * 22.0 1
PSP PSP-3 (0.3mm Soler Ball) 14.4 * 14.4 1
PSP PSP-4 (0.3mm Soler Ball) 14.4 * 14.4 1
PSP PS3-5CPU (0.3mm Soler Ball) 11.5 * 11.5 1
PSP PSP-6 (0.3mm Soler Ball) 13.5 * 13.5 1
PSP PSP-7 (0.3mm Soler Ball) 11.5 * 11.5 1
PSP PSP3-1 (0.3mm Soler Ball) 13.5 * 13.6 1
PSP PSP-MB44C018A (0.3mm Soler Ball) 14.4 * 14.4 1
PSP PSP-LR38807 (0.3mm Soler Ball) 13.5 * 13.6 1
PSP 833KM3E (0.3mm Soler Ball) 11.5 * 11.5 1
PSP L8GV7657 (0.3mm Soler Ball) 11.5 * 11.5 1
PSP PSP-Z7-201A (PSP-27-201A) (0.6mm Soler Ball) 14.4 * 14.4 1
Sony CXD2929GB KF 0.6 30.5 * 31.0 1
PSP PS3-2 KF 0.6 43.2 * 43.4 1
Universal Network 0.25-0.76MM (18PCS)
0.25MM Wan pitch with a net 0.5 35.3 35.3 * 1
0.30MM Wan pitch with a net 0.5 35.4 35.3 * 1
0.35MM Wan pitch with a net 0.6 35.5 35.5 * 1
0.5MM 35 * 35 Universal Network spacing 35.0 * 35.0 0.78 1
0.5MM 40 * 40 Universal Network spacing 40.0 * 40.0 0.81 1
0.55M Wan pitch with a net 1.02 50.6 1 50.6 *
0.6MM 24 * 24 Universal Network spacing 24.0 * 24.0 0.99 1
0.6MM 27 * 27 Universal Network spacing 27.0 * 27.0 0.99 1
0.6MM 30 * 30 Universal Network 0.99 30.0 * 30.0 1 pitch
0.6MM 33 * 33 Universal Network 0.99 33.0 * 33.0 1 pitch
0.6MM 41 * 41 Universal Network spacing 41.0 * 41.0 1.01 1
0.65MM Wan pitch with a net 1.0 47.6 47.6 * 1
0.76MM30 * 30 Universal Network spacing 30.0 * 30.0 1.27 1
0.76MM33 * 33 Universal Network spacing 33.0 * 33.0 1.27 1
0.76MM34 * 34 Universal Network spacing 34.0 * 34.0 1.27 1
0.76MM37 * 37 Universal Network spacing 37.0 * 37.0 1.27 1
0.76MM 41 * 41 Universal Network spacing 41.0 * 41.0 1.27 1
1.00MM Wan pitch with a net 1.5 48.5 48.5 * 1
MTK / IPHON4 (16PCS)
MTK MTK3301 9.8 * 9.8 1
MTK MTK6205 14.5 * 14.5 1
MTK MTK6217 15.7 * 15.7 1
MTK MTK6218 15.7 * 15.7 1
MTK MTK6219 15.7 * 15.7 1
MTK MTK6223 11.9 * 11.9 1
MTK MTK6225 14.4 * 14.4 1
MTK MTK6226 15.7 * 15.7 1
MTK MTK6228 15.7 * 15.7 1
MTK MTK6230 15.7 * 15.7 1
MTK MTK6231 14.4 * 14.4 1
MTK MTK6235 15.9 * 15.9 1
MTK MTK6238 15.9 * 15.9 1
MTK MTK6318 9.4 * 9.4 1
MTK MTK6325 15.6 * 15.5 1
MTK MTK6600 15.0 * 15.0 1
Qualcomm series (32PCS)
Qualcomm MDM0200 13 * 15.5 1
X44305BC 15.1 * 15.1 1
MSM7227 14.7 * 14.7 1
PM7540 10.3 * 10.3 1
LC1808B 16.3 * 16.3 1
QS6085 15.3 * 15.3 1
QSC6020 18 * 18 1
MSM7625 13.9 * 13.9 1
13.3 13.3 * 1
51001582002 11.9 1 11.9 *
MSM7627 14.7 * 14.7 1
Qualcomm MSM7225A 14.2 * 14.2 1
VP40584B 14.8 * 14.8 1
F320C3TD 8.2 * 9.7 1
O546MBD 10 * 13.2 1
MQ7479FS 8.2 * 9.7 1
TWL3025B2 11.6 * 11.6 1
84UD2238TE-90 10 * 13.2 1
PMB6850E 15.6 * 15.6 1
34HF3284 10 * 10 1
WL3SMPU24 10 * 13.2 1
0703FBBA 10 * 11.6 1
0407MXMG 11.6 * 13.2 1
A321750b0H 10 * 13.2 1
MSM5100 17.2 * 17.3 1
PMB7850E 14.8 * 14.8 1
290L163TE-70 8.4 * 10 1
K524626BCBA050 11.6 * 15.6 1
Abb720ABC2 14.8 * 14.8 1
MIAMI606 8.2 * 9.7 1
F4B9650 12.8 * 15.4 1
7M5012 8.8 * 8.8 1
IPHONE4 3G 4G 3GS series of new (46PCS)
iphone cpu A 17.3 * 17.3 1
iphone cpu B 17.2 * 17.3 1
iphone cpu C 16.9 * 16.9 1
iphoneLG3G cpu 17 * 16.8 1
iphone 2 16.8 * 15.8 1
iphone GO923 16.4 * 13.3 1
CPU 11.9 * 11.9 1
Main Power 9.3 * 9.3 1
Power A 8.3 * 8.3 1
Power B 7.1 * 8.3
Power 1 8.3 1 8.3 *
Audio IC 8.2 * 7.1 1
10.9 * 10.9 a small font
iphone main power 9.5 * 9.9 1
iphone 3GS Apple Power 9.8 * 9.7 1
IF IC 9.3 * 9.3 1
3G Power 1 9.6 1 9.9 *
iphone cpu F 17.3 * 17.3 1
3GS small cpu 16.3 * 13.3 1
iphone 3Gcpu 15.8 * 15.9 1
iphone A 14.4 * 14.3 1
CPU 34.5 * 16.4 1
iphone cpu E 12.7 * 13.3 1
iphone cpu D 13 * 13.3 1
smp31 8.3 * 8.3 1
touch IC 7.8 * 7.8 1
iphone touch IC 7.8 * 7.8 1
amp 11.5 * 9.7 1
yards chip 6.3 * 5.4 1
Compass IC 5.8 * 5.8 1
boost IC 5.3 * 5.3 1
HTC font 11.6 1 14.8 *
iphone font A 13.3 * 10 1
iphone font B 13.3 * 10 1
601 174 10.8 13.2 * 1
GO720 12.5 * 9.2 1
iphoneB 10.8 * 15.4 1
iphone multi-use net 17.2 17.2 * 1
LG3G font 16.9 * 131
iphone3GS cpu 17.6 * 16.3 1
15.1 * 18.1 a large font
SKY77340 11.3 * 9.8 1
EFIC 16 * 11.1 1
WIFI 15.9 * 12 1
KMBB18105 24 * 8.2 1
IPHON4-CPU 16.9 * 16.9 1
IPHONE4S series (29PCS)
4s main power 1
4s CPU 1
4s vice CPU 1
4s vice Power 1
4s main A5 1
4s small font 1
4s touch IC 1
4s WIF playback 1
4s 3GS CPU 1
4s a large font
4s Power IC 1
4s font 1
4s PR8743 play a
4s BR2582 before the camera 1
After the camera 1 975 4s 77464
4s Audio 1
4s font-powered compass 1
4s chip 1
4s supply a flash
4s A5CPU 1
4s small CPU 1
4s IF 1
4s touch IC 1
4s amplifier A 1
4s amp B 1
A 1 986 4s filter
4s filter B 1
4s-77541 character a voice
4s HB52 database 1
iphone 5 Series (The following is scraping paste board) 20PCSN Department
A6 main nuclear 1
A6 vice CPU 1
A6 CPU power a deputy
Camera 1
PA 1
Player 1
Play Power 1
Image 1
Playback 1
Upload a 1010
transfer 1
Within 1012 light 1
Touch 1
Data Analysis Library
Audio 1
The data processor 1016
font 1
a large font
Player 1
Power IC 1
Samsung 9300 (The following is scraping paste board) 8PCS
GX0063GM1216 1
105,230,581
CML0801 1
335 1E3 1
335 1E3 1
65M30 1
MAX77693 1
WM1811AE 1
NVIDEA (1PCS) scraping paste board
NVIDIA AP33-A3 KF 1
